Project Report: Automated Clustering of Free-Text Entries

---

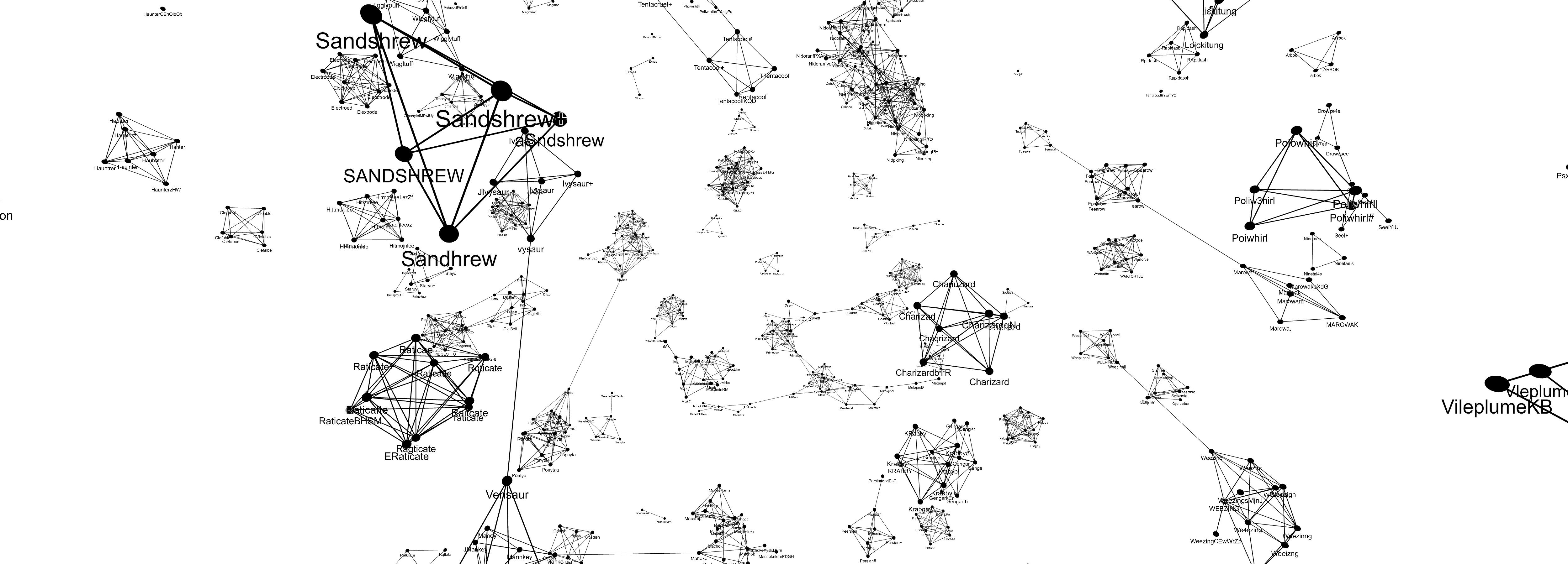

Link to Visualisation: Visualisation

Link to Notebook: Notebook

---

Problem Definition

Legacy databases often contain numerous free-text fields, such as device or manufacturer names. While flexible at the time of entry, these fields lead to severe issues during data migration: typos, abbreviations, and inconsistent naming conventions result in redundant entries for the same real-world object. Since new systems enforce predefined selection fields, historical data must be mapped to standardized categories. The core challenge is therefore to group all spelling variants of the same object before assigning them to the correct category. Automated clustering of free-text entries becomes the key solution.

Approach and Data Simulation

Evaluating clustering quality requires labeled data, but such labels rarely exist in real-world legacy systems. To overcome this, a simulation strategy was developed: canonical names were defined, and a typo generator was used to create noisy variations. Using 151 Pokémon names, more than 1,300 variants were produced, including swapped characters, omissions, and keyboard errors. This synthetic dataset allowed a structured evaluation using the F1 score, balancing precision and recall.

Similarity Measures and Ensemble Method

Clustering was based on a combination of four similarity measures:

• Cosine Similarity (vector-space representation),
• Fuzz Ratio (Levenshtein-based, robust to typos),
• Jaccard Similarity (set-based overlap),
• Substring Similarity (custom heuristic).

For each word pair, all four similarities were computed and aggregated into a weighted ensemble score. Pairs exceeding a threshold were assigned to the same cluster. Only by combining multiple similarity measures could robust and meaningful clusters be formed.

Optimization and Results

A grid search was applied to optimize both weights and thresholds. The best configuration used a threshold of 0.65 with weights distributed as follows: Fuzz Ratio 0.65, Jaccard 0.20, Substring 0.10, and Cosine 0.05. This ensemble achieved an F1 score of 0.909 on training data and 0.902 on test data, demonstrating strong generalization. Importantly, results showed that no single similarity measure was sufficient on its own; only the ensemble approach delivered robust performance.

Lessons Learned

The study confirmed that combining multiple similarity measures significantly outperforms relying on a single metric. The Fuzz Ratio proved most influential, handling common typo patterns effectively. At the same time, supporting metrics such as Jaccard and Substring Similarity contributed to overall robustness.

Limitations and Future Work

Challenges remain in distinguishing highly similar names (e.g., Tentacool vs. Tentacruel). To further improve performance, future work should explore embedding-based approaches, such as word vectors or transformer models, to capture semantic nuances beyond surface similarity. Additionally, replacing grid search with evolutionary optimization could increase efficiency while potentially improving clustering accuracy.

Business Case

The developed clustering approach delivers tangible benefits in data migration and data quality management:

• Efficiency Gains: Automated grouping of thousands of inconsistent free-text entries drastically reduces manual cleaning efforts, saving significant time and resources.
• Data Quality Assurance: By consolidating duplicate and inconsistent entries into standardized categories, the target system receives cleaner, more reliable data.
• Reduced Migration Risks: Inconsistent mappings during migration can lead to operational issues, reporting errors, and compliance risks. Automated clustering minimizes these problems.
• Scalability: The method is adaptable across industries and use cases, from product catalogs to customer data, enabling consistent handling of legacy data at scale.
• Foundation for Analytics: Clean and standardized data unlocks more accurate reporting, forecasting, and advanced analytics, directly supporting better business decision-making.

Conclusion

The project demonstrates that ensemble-based similarity scoring is a powerful approach for clustering messy free-text entries. By simulating training data with controlled noise, robust evaluation and optimization become possible. This provides a scalable foundation for real-world migration projects, ensuring consistent and reliable mapping of legacy data into structured systems — while creating measurable business value through efficiency, risk reduction, and data-driven opportunities.
